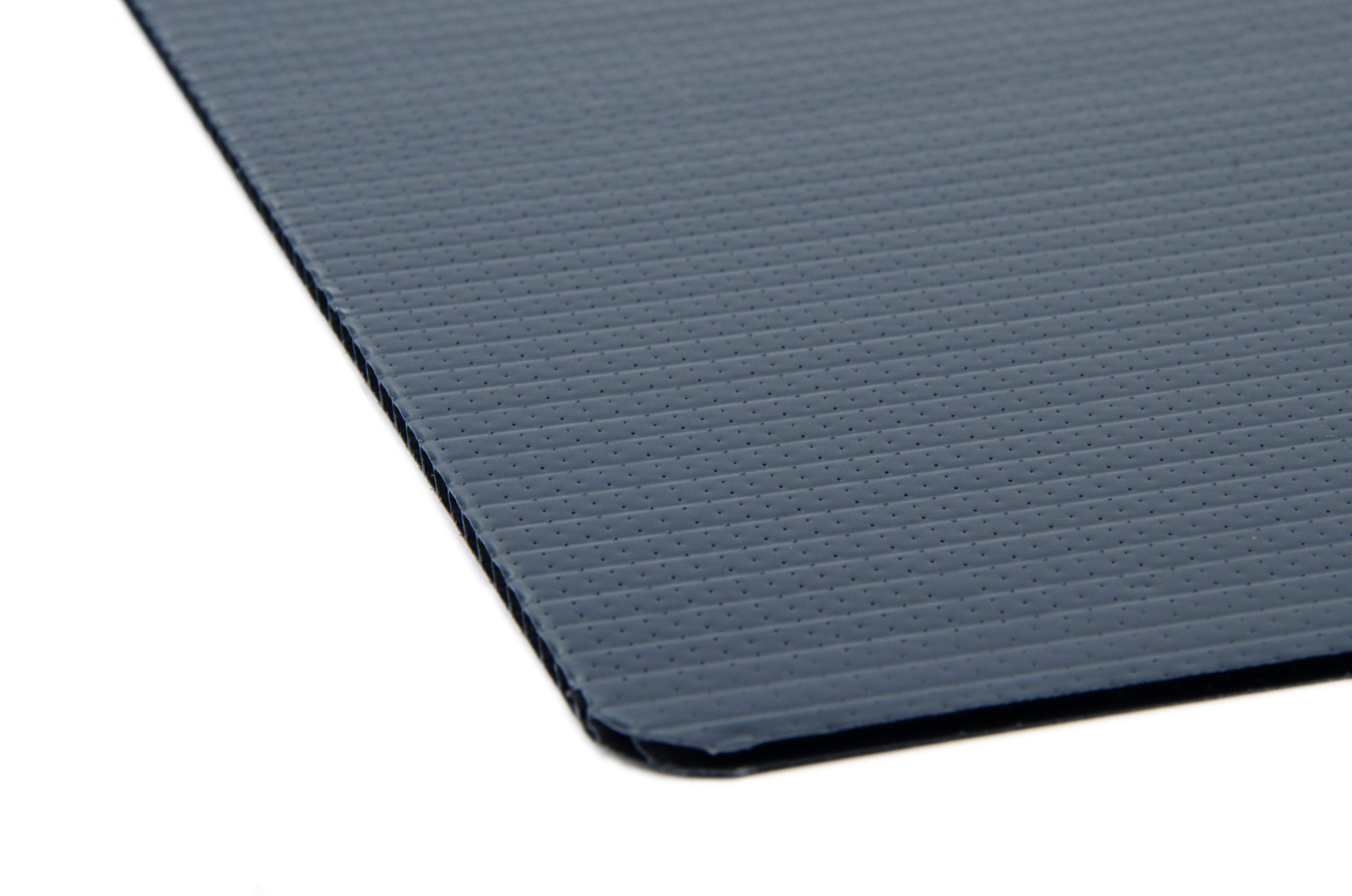

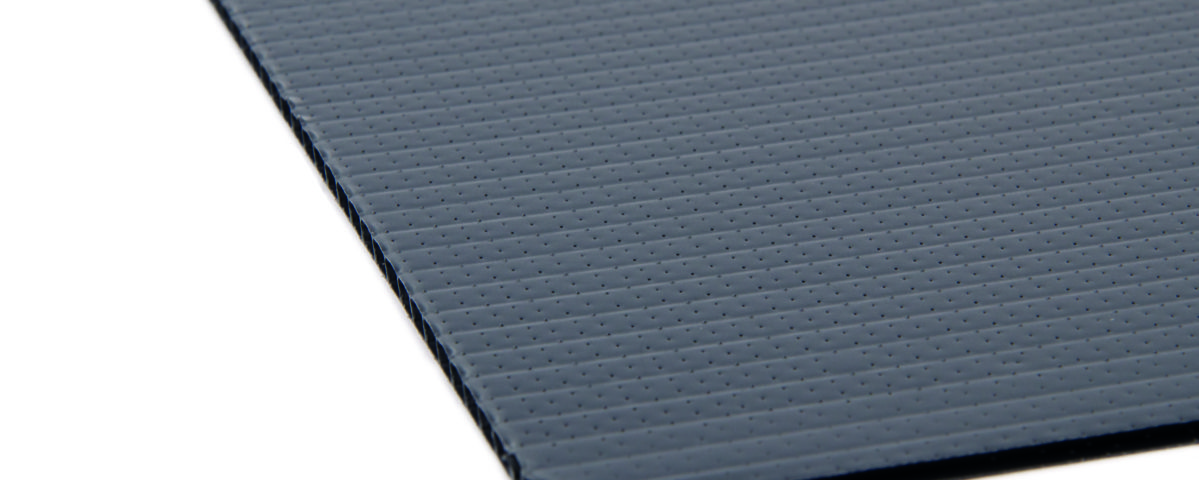

Biplex+®: Micro-perforated Biplex® corrugated sheet for under-roof application
Thanks to the double-sided and numerous micro-perforations (25/m²), Biplex+® guarantees a quick and efficient disposal of condensation. (Water permeability tested accordingly EN 1928, result class W1).
Biplex+® guarantees better ventilation under your roof through the efficient disposal of moisture and vapour. Because of the microscopic small perforations Biplex+® guarantees good water permeability.
Biplex+® is flame-retardant according to EN 13501-1, result class E.
Biplex+® is made of polypropylene copolymer and is completely recyclable (class 5).
Biplex+®, the ‘insulating’ under-roof sheet that ‘breathes’.
Through its double-sided structure, Biplex+® offers additional acoustic and thermal insulation.
Biplex+® has ATG approval as under-roof sheet (certificate ATG 1926) and has the European CE label with CE EN 13859-1 approval.
Delivery program
Width |
Length |
Thickness |
Weight |
|
Sheets |
1200 mm | 2500 mm | 2,5 mm | 450 gr./m² |
Rolls |
1200 mm | 25000 mm (25m) | 2,5 mm | 450 gr./m² |
- microperforation
- ventilation under your roof
- acoustic insulation
- thermal insulation
Applications
Installation guidelines

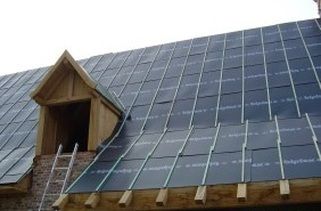

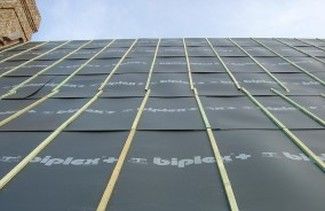

Biplex+®, swiftly onto your roof!
- can be cut easily on the roof instead of at ground level.
- irregular forms can be covered seamlessly (e.g. dormer).
- can be simply nailed or stapled.
- 1 person can manipulate and install the sheets.
- installing takes up to 40% less time than conventional materials.
- is available in sheets or rolls in order to minimize waste.
